Woodpecker® UDS-K LED ultra-sónico com LED EMS Compatível

Item No. IZI000334

Fabricante : Woodpecker
Em estoque
Nosso preço:€370.99
  • 30 Dias Devoluções
  • Garantia de 12 Meses
  • Envios gratuitos para todo o mundo em encomendas superiores a 100€.

Forma de envio: DHL, UPS, EMS e FedEx.
Nota:Quando Order com confirmado, o pagamento vai ser cobrado em 1-2 dias do trabalho e o transporte vai custar 5-8 dias úteis. veja detalhes...
  • Especificações
  • Comentários

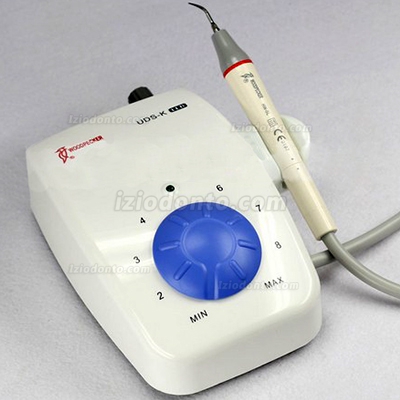

Woodpecker® UDS-K LED Ultrasonic Scaler with LED EMS Compatible



1. Detachable handpiece with light, better visibility.
2. The handpiece is detachable and can be autoclaved to 135℃ and 0.22MPa.
3. The handpiece is cast from Titanium alloy to ensure sound mechanic function and durability.
4. Assembled with excellent piezo-ceramic, the handpiece has high and lasting power and generates little heat.
5. The cable is made from silica gel tube, soft and durable.
6. The scaling tip is made of special material. The cavitation produced from the end of scaling tip makes the cleaning of teeth and the killing of germ easily.
7. Eliminating dental calculus.
8. Automatic frequency tracking ensures that the machine always works on the best frequency and performs more steadily.
9. Digitally controlled, easy operation and more efficient for scaling.
10. Compatible with EMS, you could connect your EMS handpiece with this control box, and you could also connect this Woodpecker UDS handpiece with EMS control box.
11. CE and FDA certificated.


Technical specifications

Adapter input 220-240V~ 50/60Hz 150mA Output primary tip vibration excursion ≤100μm
Output half-excursion force <2N Output tip vibration Frequency 28kHz±3kHz
Main unit input 24V~, 1.3A Output power 3-20 W
Main unit fuse T1.6AL, 250V Adapter fuse T0.5AL, 250V
Water pressure 0.01-0.5MPa Operating mode Continuous operation
Weight of main unit 0.75 Kg Weight of adapter 1.2 Kg
Protection against electric shock Class II, Type BF Dimension 170 * 111 * 65 mm
Protection against harmful ingress of water Ordinary equipment Protection degree against water (used on foot switch) IPX1


Packing list

1. Main unit x 1
2. Handpiece x 1
3. Foot switch x 1
4. Tip x 5
5. Adapter x 1
6. Torque wrench x 1
7. Operation manuel x 1
